Brand new and easy section! ~~~> MONITORS AVAILABLE BY GAS NAME

WALL MOUNTED INFRARED CO₂ ANALYZER

CEA 288: (Click on product name or pictures for more details)
Digital readout of Standard Ranges 0-10,000 ppm (0-1%), 0-10%, or 0-100% with other full scale ranges including 0-2000 ppm, 0-5000 ppm, 0-2%, 0-5%, 0-20%, 0-50% and more available Completely self contained with built-in air pump, and external hydrophobic filter Water resistant and dust tight Rugged, heavy duty design - NEMA 4X enclosure Adjustable alarm and contact relay 0-1 VDC and 4-20 mA linear outputs Easy to install, operate, and maintain

Download the CEA 288 Brochure, Specifications, and USA Price List

This Product Information is supplied in PDF format. To view these documents you need Adobe Acrobat Reader, which you can download free of charge by clicking on the link below:

Download Adobe Acrobat Reader

PORTABLE AC/DC INFRARED CARBON DIOXIDE MONITOR

GD-888 SERIES: (Click on product name or pictures for more details)
Carbon Dioxide ranges up to 10,000 ppm (1%), 10%, or 100% Volume Portable size - fits in your palm Battery charger also provides AC power Built-in air pump for fast response Optional Datalogger Adjustable audio alarm Lightweight - Less than Two pounds Simple push button operation Backlight, recorder output, and Optional relay

Download the GD-888 Brochure, Specifications, and USA Price List

This Product Information is supplied in PDF format. To view these documents you need Adobe Acrobat Reader, which you can download free of charge by clicking on the link below:

Download Adobe Acrobat Reader

AFFORDABLE INFRARED CO₂ MONITOR

CEA 144: (Click on product name or pictures for more details)
Standard ranges of 0-2000 ppm, 0-5000 ppm, 0-1%, 0-2%, 0-5%, 0-10%, and 0-100% Volume are available Continuous monitoring with state-of-the-art sensor Optional relay contact Extremely lightweight, durable, and accurate 0-1 V and 4-20 mA outputs with optional relay Filter protects sensor from dust and smoke Low maintenance with calibration needed only once a year

Download the CEA 144 Brochure, Specifications, and USA Price List

This Product Information is supplied in PDF format. To view these documents you need Adobe Acrobat Reader, which you can download free of charge by clicking on the link below:

Download Adobe Acrobat Reader

AFFORDABLE INFRARED CARBON DIOXIDE AND TEMPERATURE MONITOR

CEA 700: (Click on product name or pictures for more details)
Carbon Dioxide readout up to 10,000 ppm (1%) Large, easy to read digital display Patented dual beam, absorption infrared gas sensor ensures long term stability Temperature shown in either ^oF or ^oC Easily adjustable for altitude changes Plug in AC adapter for continuous use Portable up to 80 hours with 4 AA batteries Very low cost with fast, simple calibration Completely self contained, durable, and lightweight Flip out stand for desktop monitoring

Download the CEA 700 Brochure, Specifications, and USA Price List

This Product Information is supplied in PDF format. To view these documents you need Adobe Acrobat Reader, which you can download free of charge by clicking on the link below:

Download Adobe Acrobat Reader

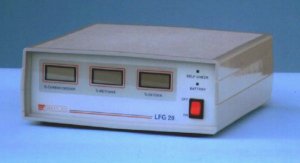

PORTABLE LANDFILL MULTI-GAS METHANE, CARBON DIOXIDE, AND OXYGEN ANALYZER

LFG-20 PLUS: (Click on product name or pictures for more details)
METHANE, CARBON DIOXIDE, and OXYGEN gas measurements only Simultaneously monitors and displays all three gases accurately Infrared technology used for 0-100% Volume analysis of CH4 and CO2 Electrochemical cell used for 0-25% Volume monitoring of Oxygen Option of built-in data logger with PC download software Extremely easy to use with built-in air pump and self diagnostics Compact design, lightweight, and with reliable technology Complete with carrying case and battery charger/power supply

Download the LFG-20 PLUS Brochure, Specifications, and USA Price List

This Product Information is supplied in PDF format. To view these documents you need Adobe Acrobat Reader, which you can download free of charge by clicking on the link below:

Download Adobe Acrobat Reader

COMPACT PORTABLE AND WALL MOUNTED INFRARED GAS ANALYZERS

SB1000 & SB2000: (Click on product name or pictures for more details)
The RI-555 has finally been replaced with these newest series of low cost, more compact units with better features and flexibility!
Portable SB1000 and Wall Mounted SB2000 Infrared gas analyzers available for percentage (%) monitoring of one of the following:
Carbon Monoxide Carbon Dioxide Methane Ammonia Nitrous Oxide Sulfur Dioxide	Ethylene Ethane Propane Butane Pentane Available For Other Gases
Self contained, latest Single Beam Infrared Technology Huge range of gases unmatched by other analyzers typically available full scale from 0-0.5% up to 0-100% Dual Gas versions with Oxygen or Electrochemical Sensors added Digital Display, Built-in Sample Pump, and Audio/Visual gas alarms Optional 4-20 mA or 0-1 VDC linear outputs Compact, highly reliable, proven design Single AC power supply, 24 VDC (SB2000), and/or battery (SB1000) operation SB2000 Wall Mount allows all functions to be set by remote PC link SB2000 Wall Mount offers automatic zero function with 6 months calibration cycle SB1000 Portable offers span and zero adjustments via external potentiometer Simple to calibrate and operate

Download the SB1000 & SB2000 Brochure, Specifications, and USA Price List

This Product Information is supplied in PDF format. To view these documents you need Adobe Acrobat Reader, which you can download free of charge by clicking on the link below:

Download Adobe Acrobat Reader

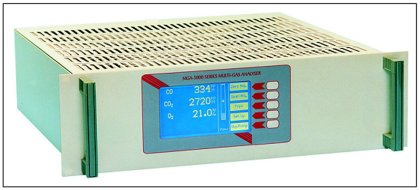

ADVANCED INFRARED MULTI-GAS ANALYZER

MGA 3000: (Click on product name or pictures for more details)
Single or multiple gas analyzers - Up to four gases at once Option to upgrade at later date protects initial investment Several different, field proven technologies utilized Fully supported from a single reliable source For use in hostile or friendly environments Robust, attractive, compact 3U rack mount enclosure Optional bench case available for non-rack mount Best price performance on the market Designed with user requirements in mind

Download the MGA 3000 Brochure, Specifications, and USA Price List

This Product Information is supplied in PDF format. To view these documents you need Adobe Acrobat Reader, which you can download free of charge by clicking on the link below:

Download Adobe Acrobat Reader

CEA INSTRUMENTS offers many other specialized analyzers and detectors
Please Contact Us with all your gas monitoring applications and questions
